BLIZZARD
Wet Location High Bay

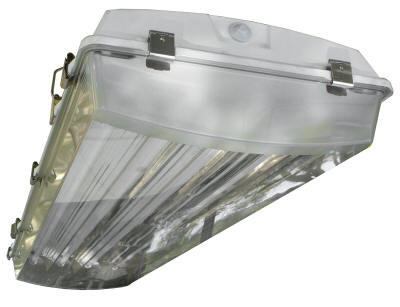

The Blizzard Fixture is a wet location high bay fixture that has passed a 1500 PSI hose down test. This fixture is NSF rated for splash zone applications. It has a NEMA 4X rating and is perfect for Outdoor applications. The fixture comes with a water clear lens, stainless steel latches and hanging hardware.
| Reflector Material | Roll Formed 95% Enhanced Anodized Aluminum |
| Reflector Size | 2 in.
x .5 in. 6 lamp
3 in. x 1.75 in. 4 lamp |
| Lamp Types | T5HO and T8 |
| Lens Options |
Polycarbonate
Acrylic |
| Paint | None |
| Height | 5.95 in. |
| Length | 51.81 in. |
| Width | 14.61 in. |
| Latches | 8 stainless steel |
| 1/2 in. KOs | End panels, each end on top |
| Housing Ratings |
UL Wet NEMA 4x IP67 RoHS |
| Temp Rating |
4 Lamp T5HO up to 40C 6 Lamp T8 up to 40C 6 Lamp T5HO up to 25C |
