FLUID
retail high bay

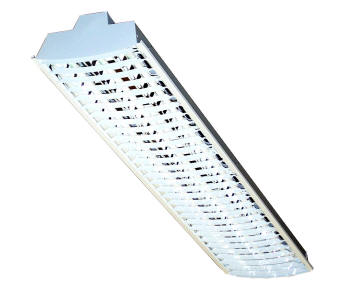

The Fluid fixture is a high out put fluorescent fixture that is perfect for Commercial and Retail applications. The fixture features a white louvered baffle that give the fixture an enclosed appearance while protecting the lamps from impact.
| Reflector Material | Roll Formed 95% Enhanced Anodized Aluminum |
| Reflector Size | 3 in. x 1.75 in. per lamp |
| Lamp Types | T5HO and T8 |
| Material Options | .032 in. Steel White (22 ga.) |
| Paint | High Gloss Polyester |
| Height | 4.9 in. |
| Length | 48 in. and 96 in. |
| Width | 10.25 in. |
| 3/4 in. KOs | Center |
| 1/2 in. KOs | End panels, each end on top |
| Access Plate | Side mount access plate with 1/2 in. KO |
| Mounting | Chain, Y Paddle Cables, Single Center Pendant, Dual Pendant, Surface Mount |
