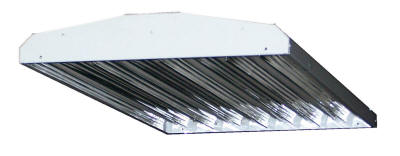

Himalayan 2
Premium High Bay
The Himalayan 2 is a premium fluorescent high bay that is durable enough for school gymnasiums. The vented center ballast channel add rigidity while providing excellent heat dissipation. The side mount access plate allows the fixture to be wired and installed without removing the lamps and provides access to the center knock out. The Himalayan 2 is the most configurable and complete high bay line available.
| Reflector Material | Roll Formed 95% Enhanced Anodized Aluminum |
| Reflector Size | 3 in. x 1.75 in. per lamp |
| Lamp Types | T5HO and T8 |
| Material Options | .040
in. Aluminum White
.032 in. Steel White (22 ga.) |
| Paint | High Gloss Polyester |
| Height | 4 in. |
| Length | 48 in. |
| Width | 3 in. x number of lamps |
| Heat Ratings | 138F 6 lamp T5HO aluminum |
| 131F 6 lamp T5HO steel | |
| 3/4 in. KOs | Center |
| 1/2 in. KOs | End panels, each end on top |
| Access Plate | Side mount access plate with 1/2 in. KO |
| Mounting | Chain, Y Paddle Cables, Single Center Pendant, Dual Pendant, Surface Mount |
| Lens Options | Clear Acrylic, Poly Carbonate, Prismatic |
