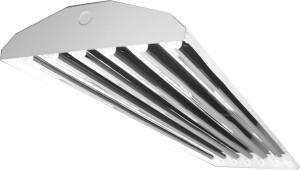

Himalayan 3
Reduced Profile High Bay
The Himalayan 3 is a reduced profile version of the popular Himalayan 2. The H3 uses the same construction techniques as the H2 including the inclusion of the vented center ballast channel for excellent heat dissipation and rigidity. The H3 uses a smaller reflector system and produces about 3% less light than the equivalent H2.
| Reflector Material | Roll Formed 95% Enhanced Anodized Aluminum |
| Reflector Size | 2 in. x .5 in. per lamp |
| Lamp Types | T5HO |
| Material Options | .040 in. Aluminum White |
| Paint | High Gloss Polyester |
| Height | 3 in. |
| Length | 48 in. |
| Width | 2 in. x number of lamps + .25 in. |
| Heat Ratings | 124F 4 lamp T5HO aluminum |
| 3/4 in. KOs | Center |
| 1/2 in. KOs | End panels, each end on top |
| Access Plate | Side mount access plate with 1/2 in. KO |
| Mounting | Chain, Y Paddle Cables, Single Center Pendant, Dual Pendant, Surface Mount |
| Lens Options | None |
