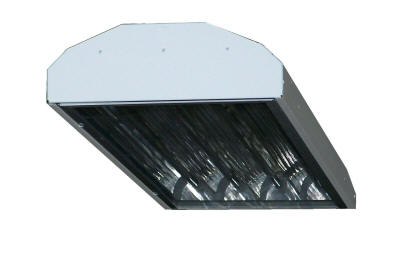

Himalayan Recessed
High Bay with Recessed Door Frame Lens
While the Himalayan 2 has a surface mounted lens option, the HSR/HAR series has a recessed door frame lens that improves access and maintainability. The door frame latches by two cam latched similar to a 2x4 recessed fixture. This design is available on all 4 foot Himalayan 2 configurations as well as the 4 foot Aisle Way configuration.
| Reflector Material | Roll Formed 95% Enhanced Anodized Aluminum |
| Reflector Size | 3 in.
x 1.75 in. per lamp (HSR, HAR)
4 in. x 1.25 in. per lamp (HSRN, HARN) |
| Lamp Types | T5HO and T8 |
| Material Options | .040
in. Aluminum White
.032 in. Steel White (22 ga.) |
| Paint | High Gloss Polyester |
| Height | 4 in. |
| Length | 48 in. |
| Width | Reflector width plus 1.5 in. |
| 3/4 in. KOs | Center |
| 1/2 in. KOs | End panels, each end on top |
| Access Plate | Side mount access plate with 1/2 in. KO |
| Mounting | Chain, Y Paddle Cables, Single Center Pendant, Dual Pendant, Surface Mount |
| Lens Options | Clear Acrylic, Poly Carbonate, Prismatic |
